Change the Background Color of Kendo UI Grid Row on Load

The Kendo UI Grid, from Telerik, looks and feels excellent right out of the box.  However, there are times where your UI could benefit from tweaking the standard look and feel to make something standout, to draw the users attention to an important piece of information or highlight some operational need.  Kendo makes this easy.

It’s no secret, that I am a huge fan of the Kendo package.  One of the many reasons why, is that it is built on open standards and functions as you would expect a web library should.  In this example we are going to highlight rows in the Kendo Grid based on the data in a specific column in each row. And we are going to use standard JQuery functions to do so.

Our demo grid is going to display a list of transactions to our user.  We want to make it super clear which transactions are DEPOSITS and which transactions are WITHDRAWALS.  The full source for the demo is here: https://bitbucket.org/abumgardner/kendo-ui-grid-row-color-demo/

And our end result should look like this:

Changing row background color based on data in the row

Changing row background color based on data in the row

To start we create a standard POCO to represent our transactions and place this in the Models folder.

public class Transaction
{
  public string Description { get; set; }
  public bool deposit { get; set; }
  public decimal Amount { get; set; }
}

Then we can define a basic Kendo Grid.  We are not doing anything fancy with the grid at this point.  It is just a simple Kendo Grid that is added to our index.cshtml view.

@(
    Html.Kendo().Grid<ColorGridDemo_Two.Models.Transaction>()
        .Name("DemoGrid")
        .Columns(columns =>
        {
            columns.Bound(p => p.Description).Title("Transaction Description");
            columns.Bound(p => p.deposit).Title("Deposit?");
            columns.Bound(p => p.Amount).Format("{0:c}");
        })
        .Sortable()
        .Filterable()
        .Events(evnts => evnts.DataBound("ColorMeBad"))
        .DataSource(datasource => datasource.Ajax().PageSize(10)
                  .Read(read => read.Action("Transactions_Read", "Home"))
                )
)

If you notice in our grid definition we have the following line:

.Events(evnts => evnts.DataBound("ColorMeBad"))

We are going to use the Grids built in DataBound event to fire off a piece of Javascript that will alter the css in use.  To learn more about the events see the Telerik website here: https://docs.telerik.com/kendo-ui/api/javascript/ui/grid  The docs tell us that the databound event is “Fired when the widget is bound to data from its data source.” That description is not super clear, but it fires after the datasource is bound.  If you ever need to take some action immediately before the datasource is bound, then look for the databinding event.

When we setup our grid we told it to fire a javascript function named ColorMeBad on the DataBound event.  This is where we will do the actual work of coloring the rows.

function ColorMeBad() {
        var grid = $("#DemoGrid").data("kendoGrid");
        var data = grid.dataSource.data();
        $.each(data, function (i, row) {
            if (row.deposit) {
                $('tr[data-uid="' + row.uid + '"] ').css("background-color", "green");
            } else {
                $('tr[data-uid="' + row.uid + '"] ').css("background-color", "red");
            }
        })
    }

Here we use JQuery to get a reference to the grid, use the grids dataSource object to get the data, then iterate over the rows.  We are checking the deposit property on our transaction model, and if true using css to change the background color to green, otherwise red.

You can clone the demo project here: https://bitbucket.org/abumgardner/kendo-ui-grid-row-color-demo/

Let’s Build Something

Introducing Code & Clarity, LLC and Clarity Issue Tracking

If you are a regular reader you may have noticed that posts here have slowed down a bit and you would be correct.  Two major factors have contributed to this slowdown.



First, I have started a consulting company.  I have been doing freelance software development for a few years.  Due to the size, complexity, and types of projects I have worked on recently it started to make sense to expand my legal protections beyond what my insurance and sole proprietor status provided.  Therefore, I am happy to introduce you to Code & Clarity, LLC. You can click HERE or click the “Let’s Build Something” link in the header above to check out my site. Organizing in this manner will allow me to continue to build high quality software solutions for companies all over the globe.  It will also allow me to expand my business to include various SaaS (Software as a Service) products.



That leads me to factor number two.  I have been lacking in the new blog post department lately because in addition to my freelance projects I have also been hard at work building my first SaaS product under the Code & Clarity, LLC banner.  I am happy to introduce Clarity Issue Tracking!  Clarity Issue Tracking is a product aimed at developers, project managers, and teams that need to track and resolve issues.  I have had several companies beta testing CIT for a few months now and the response has been overwhelmingly positive.



In a future blog post I will focus on the architecture behind CIT, but for now I wanted to spend a few words on the why.  Issue tracking is one of those tasks that you must do in every project.  In both my prior life as a software developer building enterprise software for the nation’s largest banks and in my time as a freelancer building software for a variety of organizations I have struggled to find an issue tracker that truly offered what I was looking for.  First and foremost, for any issue tracker to be useful it needs be available to ALL users.  Nearly every commercially available product on the market today is licensed on a per user basis.  This is good for the developer but not so much for the user.  As a freelancer, I need the ability to offer ALL my clients access for the product to really be useful.  This is a key feature in CIT, every plan offers unlimited users.  Second, when designing CIT I wanted to make sure that the core product remained intuitive and easy to use while also having the flexibility to cater to as many use cases as possible.  Last, I wanted the product to be beautiful.  If you use CIT for your issue tracking (And I hope you will!), you will spend considerable time in the software.  I want that time to be pleasant and beautiful.  Tools should be functional as well as aesthetically pleasing.



To check out all the features Clarity Issue Tracking offers I hope you will go check out the website: http://www.clarityissuetracking.com



Setup a free trial.  It only takes a few seconds and no credit card is needed for the trial.  All the plans have a free 14 day period, but if you need more time just let me know and I will make that happen.  I would appreciate any and all feedback and by all means if there is a feature or function that is not present that you need let me know!  If it’s reasonable I’ll add it!



Thanks,

Adam

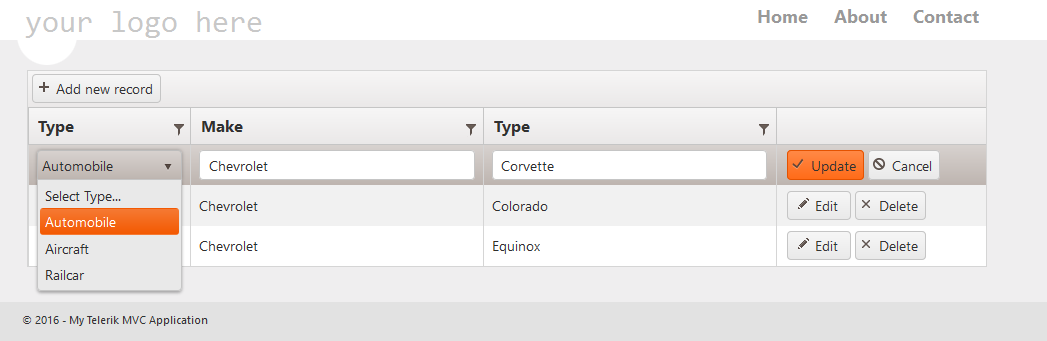

Kendo UI ASP.NET MVC Drop Down List inside a Grid Row

I tend to use the Kendo UI Grid in my applications far more than any of the other controls.  That is not to say the other controls are not as spectacularly engineered, because they are.  One of the many reasons the Kendo UI Grid is so powerful is how much it can be adapted to a myriad of situations.  For example, the guys and gals at Telerik made it extremely easy to embed drop down lists in grid rows.  This is super helpful when using the Grid’s inline edit functionality.



To get started, let’s build our model.  In this example I am going to be using multiple drop down lists per grid row to allow the user to select a “mode of transportation”.  In this post, we are only going to show how to get the drop downs working.  In the next post, I’ll take it one step further and turn our drop downs into cascading drop downs.

Read More

How to Save Windows Spotlight Lock Screen Images

One of the new features present in Windows 10 are the new Bing-like lock screen photos.  My experience has been that the photos are wonderfully done and are a really nice addition.  Microsoft did place a little button at the top allowing you to tell Windows that you like a certain photo, with the intimation that you will see more of those type of photos in the future.  Whether that actually works, I could not tell you.



What Microsoft did not do, was give you an easy way to save the photo.  There have been several that I thought would make excellent wallpapers.  Why they did not put a big button up top allowing you to save the lock screen image or make it your wall paper, we may never know.



If you want to find and save the image manually you can, but it is not straightforward.  When the lock screen image is downloaded, Windows caches a copy here:



%userprofile%\AppData\Local\Packages\Microsoft.Windows.ContentDeliveryManager_cw5n1h2txyewy\LocalState\Assets



If you navigate out that directory you will see many files with very long file names and no extension.  Unfortunately, the image files we are looking for are mixed in with the rest with no easy way to discern which files are the images we want.

One brute force method, would be to rename all the files in the directory to end with .jpg and then change your view to thumbnail.  This would allow you to see quickly which were images.



I have created a free utility to save you this hassle.  The Spotlight application will iterate thru the files and determine which are images.  It will then display them to you and give you information on each images size as well as the location on disk.  You can double click any of the images and it will open in your default image viewer.  It will also allow you to save the images anywhere you like.  This is handy if you want to set one as your desktop background.

You can download the app here: DOWNLOAD



To install, simply unzip and run the setup.exe.



Cheers!

Kendo UI Grid – Persist Expanded Row

The Kendo UI Grid is one of the most versatile grids on the market today.  The flexibility and usefulness is unparalleled and thus it is a staple in my web development toolkit.  One of my more popular use cases involves providing a Grid of data, where you can select a row and “drill in” or “expand” into to see additional details.  Sometimes those details are another grid, sometimes it is simply another view.  Kendo makes this super easy and it is demo’ed on their site here: http://demos.telerik.com/kendo-ui/grid/detailtemplate



One of the most common use cases I come across using the grid consist of the following.  The user selects and item in the grid, expands the row to "Drill In" to the details.  The user then navigates away from the page and when they come back they expect the grid to be in the same state.  Unfortunately, without a little extra work this is not possible.  Out of the box, when you navigate back to the page the grid will have defaulted back to its default state with all rows collapsed.  Here is a demonstration of this in action:

Before

Here is the high-level plan of attack:

  1. Save a unique value from each record as it is expanded.
  2. Each time the grid loads, check for the value.
  3. If present, expand saved row.

To accomplish step one, we are going to need to hook into one of the many Kendo UI events.  In this case, we are going using the DetailExpand event to call some custom javascript that will grab the expanded row and post it back to our controller in order to stash it in the session.  The DetailExpand event is detailed here: http://docs.telerik.com/kendo-ui/api/javascript/ui/grid#events-detailExpand

1
.Events(events => events.DetailExpand("GridExpanded"))

Now our grid will call the GridExpanded() JavaScript function each time a row in the Grid is expanded.  This function will have two jobs.  First, grab a unique value identifying the row, then post that value to our controller.

1
2
3
function GridExpanded(e) {
$.post("@Url.Action("SetExpandedRow", "Home")", { rowident: e.sender.dataItem(e.masterRow).id });
}

There is a lot packed into this one line function.  We are using the JQuery POST function, in order to do an HTTP Post with the data back to the controller.  To get the URL we are posting to, we are using the very handy ASP.net MVC URL helper, @URL.action.  This method takes the name of the Action and Controller and returns the appropriate relative URL. We are then providing the POST a callback function to provide the data.  In this case we are posting a name value pair named rowident where the value is the id column of our grid row.  Notice we are using the sender information passed to us from the grid to get the dataItem, and then use the dataItem to get the id. In this example the id column is a unique value in each row.  This could be any column, so long as it is unique.

The JavaScript is only one side of the equation.  The script is posting the unique row value to our controller via the SetExpandedRow action.  We now need to define the action that will catch this value and stash in the session.

1
2
3
4
5
6
[HttpPost]
public ActionResult SetExpandedRow(string rowident)
{
Session["ExpandedRowId"] = rowident;
return new EmptyResult();
}

Here we are simply throwing the expanded value in the session.  You may need to persist this in some other manner depending on your requirements.

Now that we have the last expanded row value stashed in the session we need have the Grid check each time it loads it data.  If we have a selected row value, then we need to expand that row.  We will do this by using the DataBound event.

1
.Events(events => events.DetailExpand("GridExpanded").DataBound("ExpandStashedSite"))

Each time the Grid fires its DataBound event it will now execute our JavaScript function, ExpandStashedSite().

 1
2
3
4
5
6
7
8
9
10
11
12
function ExpandStashedSite(e) {
var grid = $("[id^='Grid_1']").data("kendoGrid");
var data = grid.dataSource.data();
var len = data.length;

for (var i = 0; i < len; i++) {
var row = data[i];
if (row.id == '@string.Format("{0}", Session["ExpandedRowId"] )') {
grid.expandRow("tr[data-uid='" + row.uid + "']"); // expands the row with the specific uid
}
}
}

This function uses JQuery selectors to get our Grid.  It then gets the data currently loaded to the grid and starts looping through the records.  It checks each records id column to see if it matches our stashed value which it is simply grabbing from the session.  If it matches, then it uses the grids expandRow function.

When you put it all together it looks like this:

After

Notice that when you navigate back to the grid page, it retains the expanded grid.  This example was a simple one where we only stash the last expanded row.  However, it would be trivial to modify this code to retain all expanded rows.

Here is what the view looks like when you have it all together.

 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
@{
ViewBag.Title = "Home Page";
}

<div class="container">
<div class="row">
<h4 class="page-header">Databound Event Demo</h4>
</div>
<div class="row">
<div id="PercentError" class="alert alert-danger" style="display: none;"></div>

@(
Html.Kendo().Grid<KendoUIGridEventsBlog.Models.DemoModel>()
.Name("Grid_1")
.Columns(columns =>
{
columns.Bound(p => p.id).Hidden(true);
columns.Bound(p => p.Column1).Title("Column 1");
columns.Bound(p => p.Column2).Title("Column 2");
columns.Bound(p => p.dPercentColumn).Title("Percent Column");
columns.Command(command => { command.Edit(); command.Destroy(); }).Width(210);
})
.ToolBar(tools =>
{
tools.Create();
tools.Excel();
})
.Sortable()
.Editable(editable => editable.Mode(GridEditMode.InLine))
.Filterable()
.Resizable(resize => resize.Columns(true))
.Events(events => events.DetailExpand("GridExpanded").DataBound("ExpandStashedSite"))
.DataSource(datasource => datasource
.Ajax()
.Model(model =>
{
model.Id(p => p.Column1);
})
.Read(read => read.Action("Demo_Read", "Home"))
.Create(create => create.Action("Demo_Create", "Home"))
.Update(update => update.Action("Demo_Update", "Home"))
.Destroy(update => update.Action("Demo_Delete", "Home"))
)
.ClientDetailTemplateId("DrillInTemplate")
)
</div>

<script id="DrillInTemplate" type="text/kendo-tmpl">
@(
Html.Kendo().Grid<KendoUIGridEventsBlog.Models.DemoModel>()
.Name("Grid_DrillIn")
.Columns(columns =>
{
columns.Bound(p => p.Column1).Title("Column 1");
columns.Bound(p => p.Column2).Title("Column 2");
})
.Sortable()
.Filterable()
.DataSource(datasource => datasource
.Ajax()
.Model(model =>
{
model.Id(p => p.Column1);
})
.Read(read => read.Action("Demo_Read", "Home"))
).ToClientTemplate()
)
</script>

</div>

<script type="text/javascript">

function GridExpanded(e) {
$.post("@Url.Action("SetExpandedRow", "Home")", { rowident: e.sender.dataItem(e.masterRow).id });
}

function ExpandStashedSite(e) {
var grid = $("[id^='Grid_1']").data("kendoGrid");
var data = grid.dataSource.data();
var len = data.length;

for (var i = 0; i < len; i++) {
var row = data[i];
if (row.id == '@string.Format("{0}", Session["ExpandedRowId"] )') {
grid.expandRow("tr[data-uid='" + row.uid + "']"); // expands the row with the specific uid
}
}
}
</script>

Kendo UI Grid - Sum a Column on Load

While working on a recent project I came across a need to sum a specific column of the Kendo UI Grid in my application after it loaded.   Specifically, I had a grid where one column of each row was the “Percent of Total”.  What the client requested, was that a message be displayed at the top of the screen whenever the sum of that column in all the rows of the grid did not equal 100%.



My first thought, was that I would handle this server side.  I could calculate the sum before I ever sent the data to the view.  Drop that sum in ViewData and I would be off to the races.



The problem with this approach is that in this project I was utilizing the excellent inline edit capabilities of the Kendo UI Grid.  This meant that the user could add a new row without the screen refreshing.  Without that server round trip, I could not be sure what I was showing the user was correct.  I needed something client side!

Read More

TrumpTexting.com

Recently I was chatting with some developer friends and we happened across an idea for a fun little web app that we instantly knew would have to be written.  We were discussing how crazy the current US Presidential election cycle seems to be this year and we were lamenting the seemingly outlandish things one specific candidate was getting away with saying.

The idea was to build a web/mobile application that would allow you to send your friends/enemies anonymous text messages containing a sampling of the crazy quotes Donald Trump has uttered in this election cycle.

Politics aside, I instantly knew this would be a cool project to get up and running quickly and would allow me to explore some cool technologies.  I had some criteria that I wanted to meet before I set out to create the app.

  1. I wanted it coded/tested/deployed in under 6 hours
  2. I wanted to spend less than $100
  3. I wanted it to be awesome
  4. I wanted every quote to be legitimate.  Each quote must be cited.
  5. I wanted it to be completely anonymous. The receiver can not be aware of the sender.
  6. I wanted the receiver to be aware of when the other party received each message.
  7. I wanted the sender to be aware of any responses from the receiver.

The app is now up and running and you can check it out at: https://www.trumptexting.com

I think I came pretty close!  For criteria 1, I went slightly over my 6 hour constraint ending up at 7 hours, but I can live with that.

Getting a usable site up and running, even an admittedly small one, is an accomplishment.  This couldn't have been done in such a short time frame had it not been for building on platforms and services that are readily available.  Building on the shoulders of giants.

I plan to write a series of posts outlining the details of how TrumpTexting.com was built.  However, to get things started here are the technologies used.

The number of libraries and services free to anyone on the net is truly astounding.  The barrier to entry for building production ready applications, not just trivial quote sending apps, is very low and getting lower all the time.

Build something!

Update: A Better Way to Make a Read Only column in Kendo UI Grid Edit Mode

Shortly after hitting publish on my last blog post, I received an email from Lohith (https://about.me/kashyapa), a Technical Evangelist with Telerik in India.  He had seen my post and pointed me to the documentation that allows for a much easier method of accomplishing this task.  This is yet another example of why Telerik is such an awesome company and I am more than happy to hand over my money for a superb set of development components.

Read More

Make a Read Only column in Kendo UI Grid Edit Mode

When it comes to JavaScript and HTML 5 web application components there is absolutely none better than Kendo UI (http://www.telerik.com/kendo-ui).  Kendo UI is not cheap and there can be a slight learning curve, but it is a spectacular piece of software.  If you work in ASP.net MVC then spend the money and buy the server extensions.  Amazing.

Read More

PetaPoco – Tips and Tricks

Deciding on a data layer for your application is one of the most important decisions you will make and there is no shortage of viable options.  In the .NET world you have full fledged ORM’s such as Entity Framework or NHibernate.  There are also a large number of micro-ORM’s that solve many of the pain points of writing your data layer directly while still allowing you to manually control the actual SQL used.  Last, you always have the option of rolling your own, though there are many reasons why this is not usually the right choice.

Read More
